Wifi - Bluetooth Mesh Gateway

Linkio develop a Wi-Fi - Bluetooth Mesh gateway with the next capabilities:

  • Vocal assistant compability

  • Cloud-to-cloud with other ecosystems compability

  • Remote viewing and control of installation

  • Advanced scenarios with external data (weather)

../../../_images/gateway.png

Technical specifications

  • Power supply: 5V DC via a USB-C charger

  • Radio frequency range: 2.4GHz

  • Communication standard: BLE (advertising mode) and Wi-Fi

  • Operational temperature: 0°C to 50°C

  • Operational humidity: 85% at 25°C

  • Protection rating: IP 30

  • Dimensions: 47 mm (l) x 47 mm (L) x 15 mm (h)

Installation

The Linkio Gateway installation is very simple: after powering, a Wi-Fi network must be selected via the Linkio application. This steps are to be done only once.

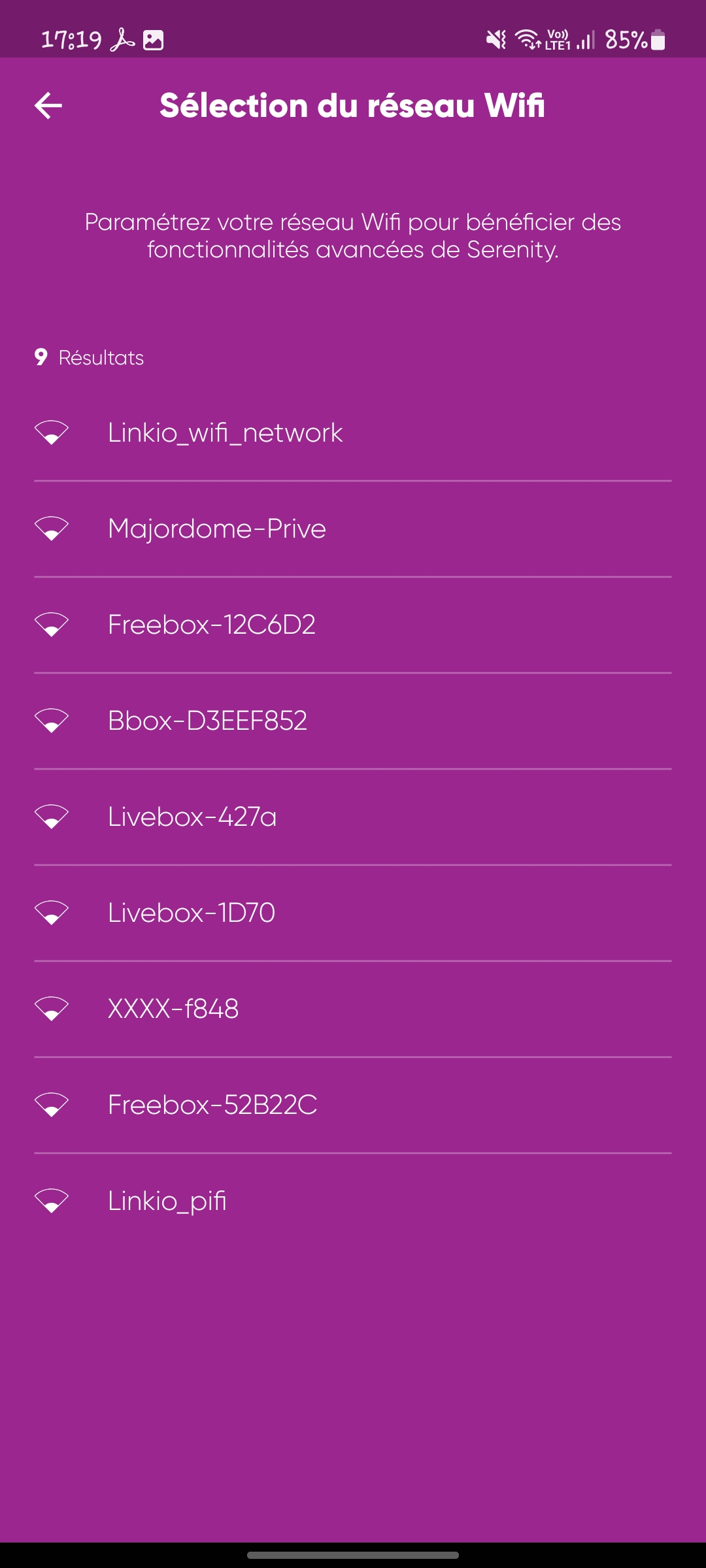

../../../_images/gw_wifi_list1.jpg

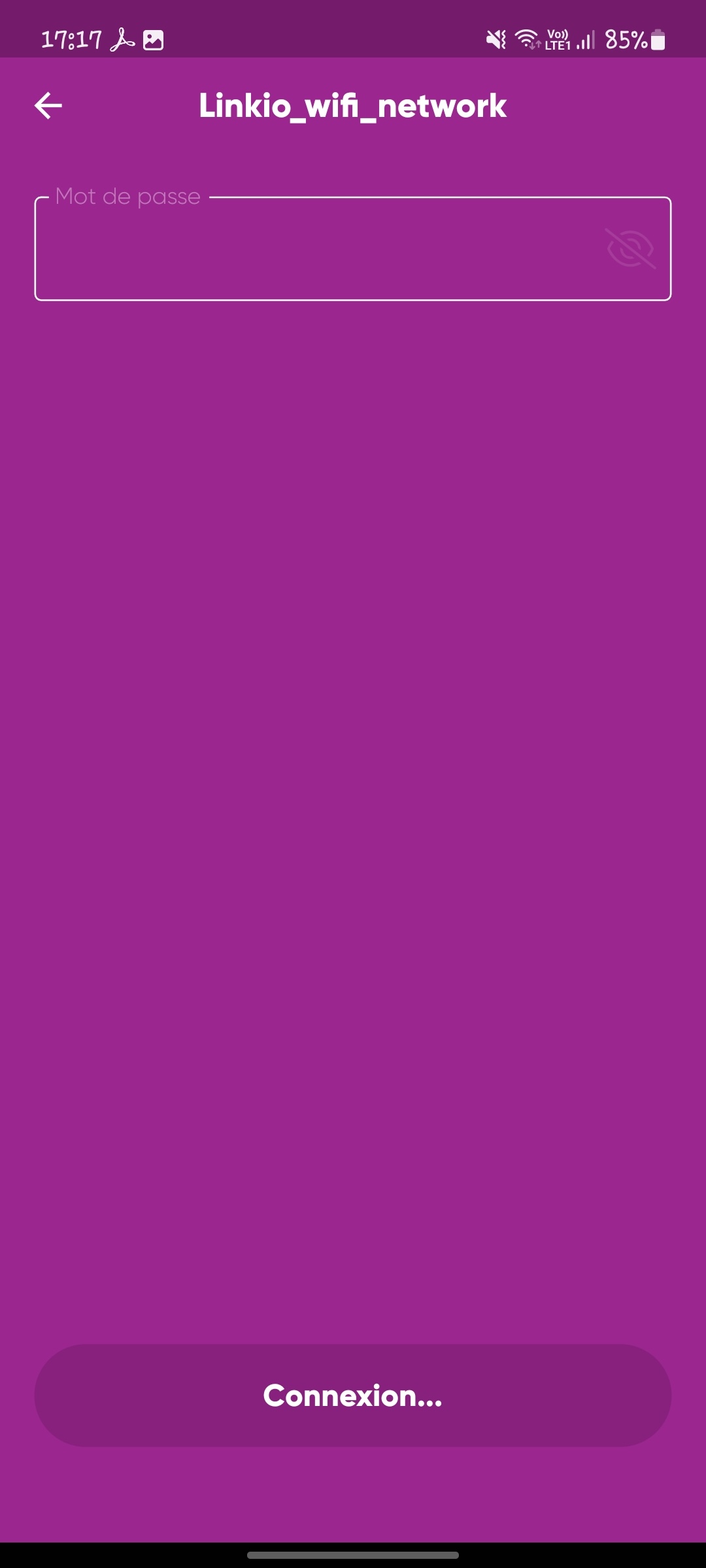

../../../_images/gw_connecting1.jpg

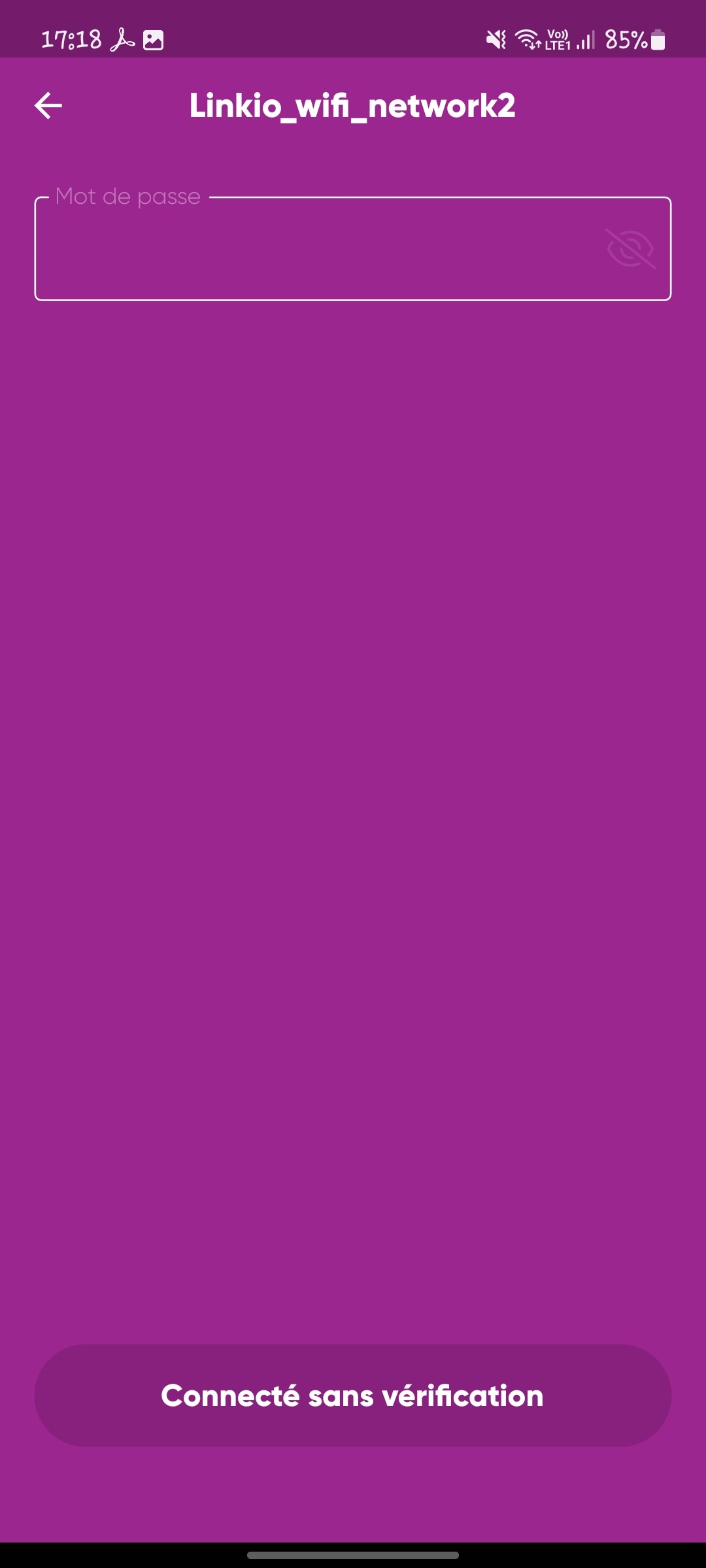

../../../_images/gw_connected1.jpg

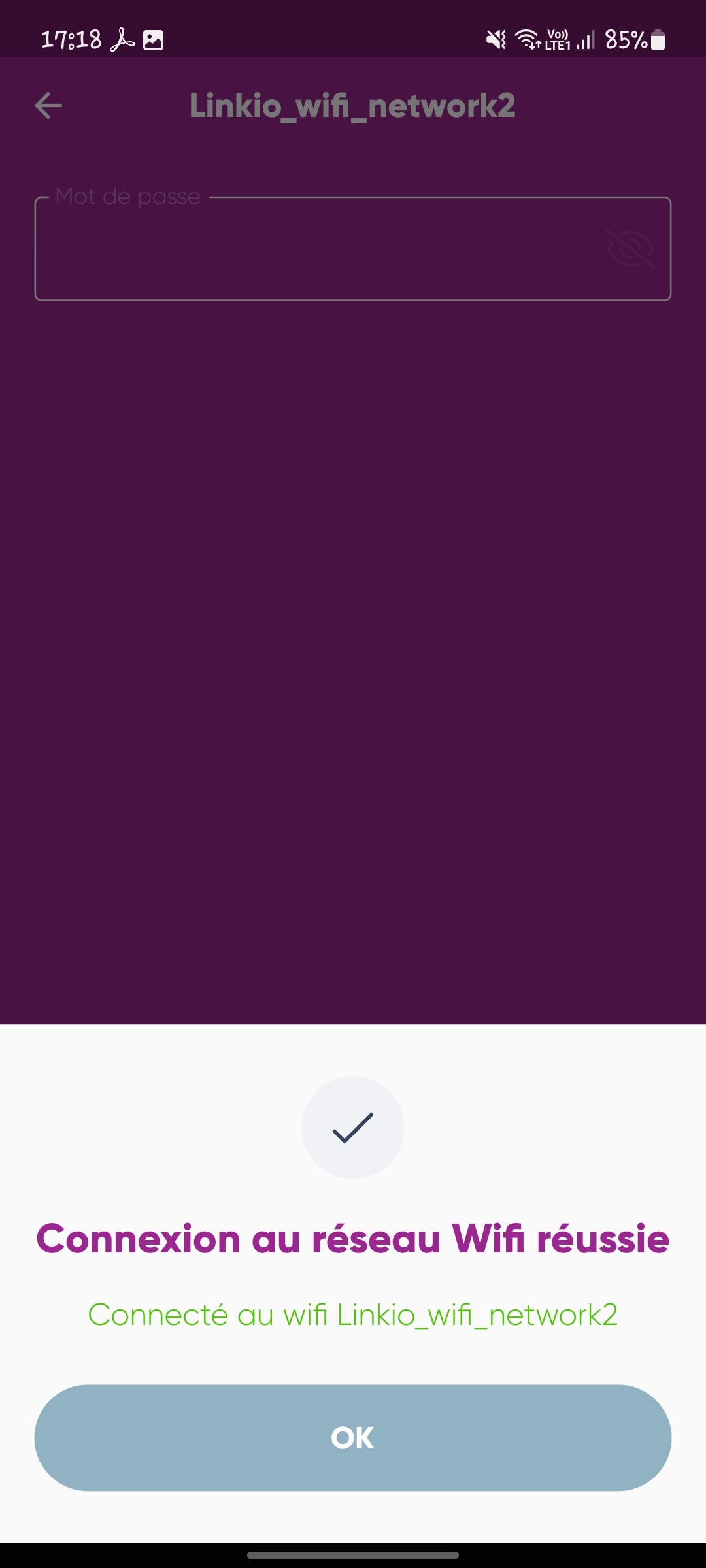

../../../_images/gw_connected_done1.jpg

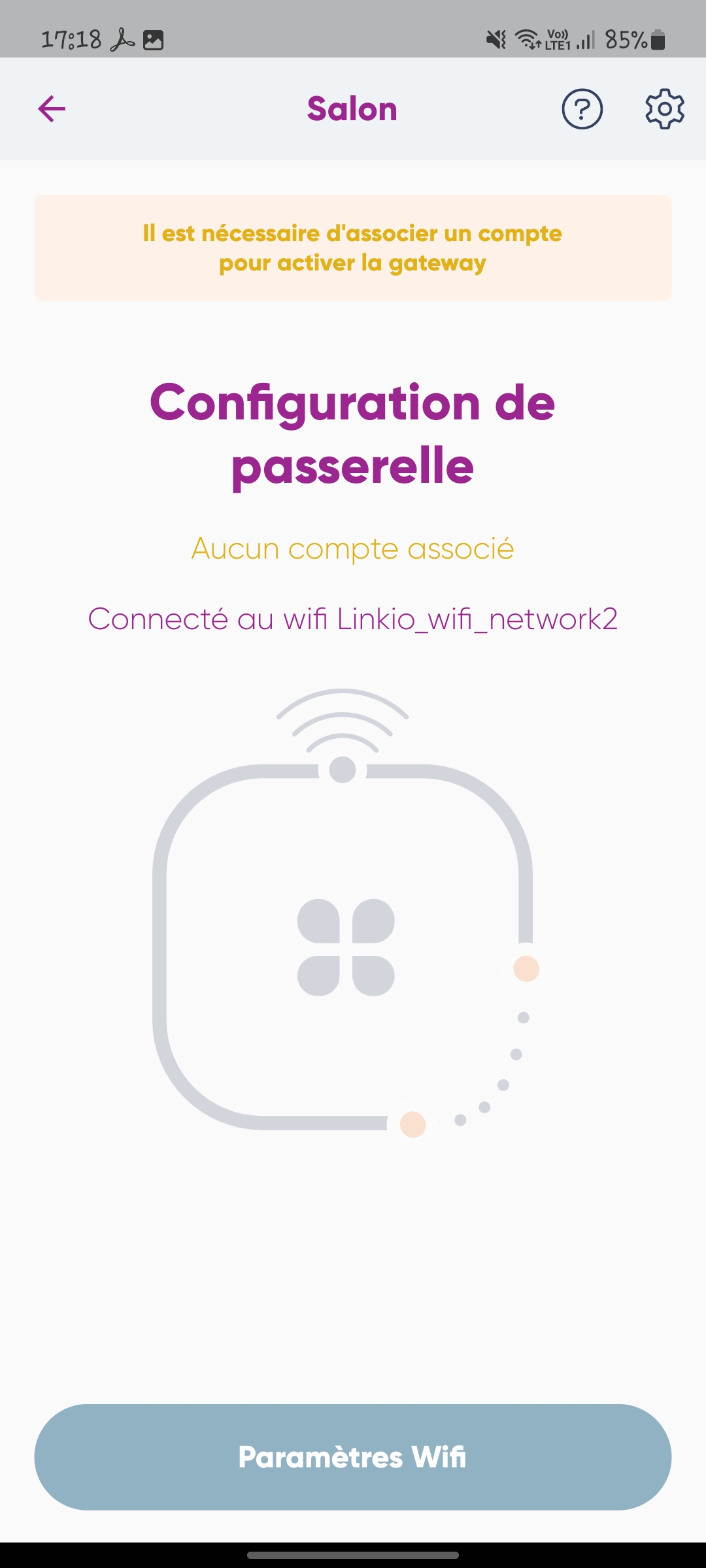

../../../_images/gw_screen1.jpg

Use Cases

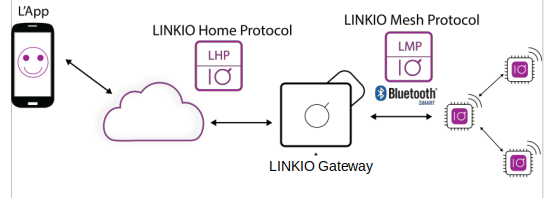

../../../_images/gw_use_case.png

In order to control Linkio Smart Gamme from outside of the house a Linkio Gateway will be needed. The Gateway will make the link between the Bluetooth Mesh Network and the app when the user is at the outside.

Certifications

  • ETSI 300 328 V2.1.1

  • ETSI EN 300 220-2 V2.4.1

  • ETSI EN 300 220-1 V2.4.1

  • ETSI EN 301 489-1 : V2.2.0

  • ETSI EN 301 489-17 : V3.1.1

  • EN 55032 : 2012

  • EN 55024 : 2010 + A1 :2015

  • EN 61000-3-2 :2014

  • EN 61000-3-3 :2013

  • EN 62368-1 :2014.

  • EN 62479 :2010
