PTM 215B: BLE Pushbutton transmitter module

PTM 215B enables the realization of energy harvesting wireless switches for EnOcean systems communicating based on the BLE radio standard. Key applications are wall-mounted or portable switches up to two rockers or up to four push buttons.

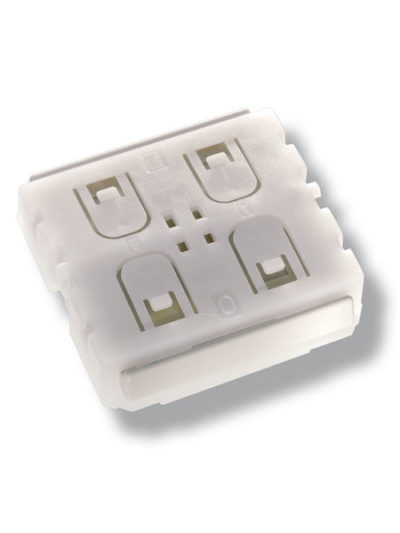

../../../_images/PTM215B.jpg

Technical specifications

  • Power supply: Integrated kinetic energy harvester

  • Radio frequency range: 2.4GHz

  • Communication standard: BLE (advertising mode)

  • RF power max: +8dBm <- Verifier :)

  • Range: 10m indoor environment

  • Operational temperature: -25°C to 65°C

  • Dimensions: 40 mm (l) x 44 mm (L) x 11.2 mm (h)

  • Humidity: 0% to 95% r.h. (non-condensing)

Installation

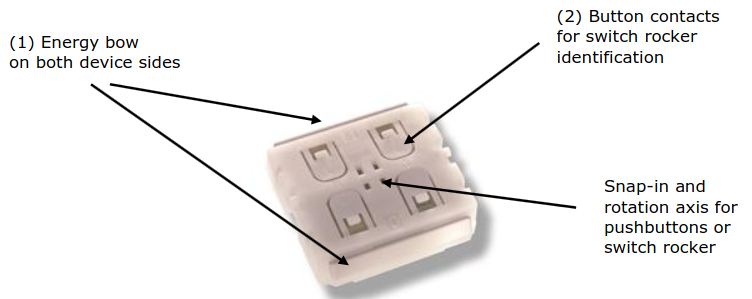

../../../_images/PTM215B_overview.png

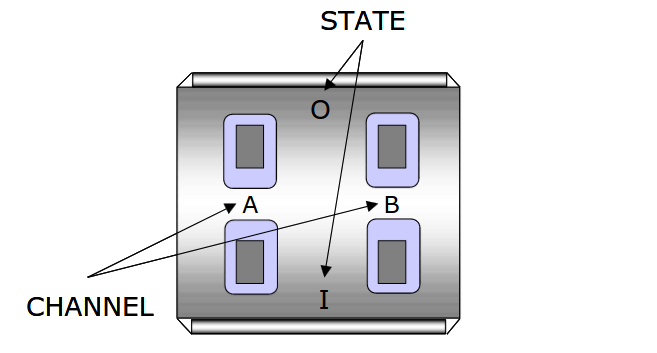

../../../_images/PTM215B_pinout.png

Mounting example

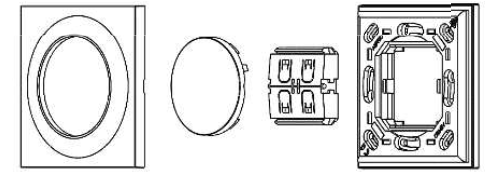

../../../_images/PTM215B_installation.png

Use Cases

Double or single rocker switch

../../../_images/PTM215B_uses1.png

Up to 4 push buttons

../../../_images/PTM215B_uses2.png

Certifications

  • ETSI EN 301 489-3:V2.1.1

  • ETSI EN 301 489-17 V.1.1

  • ETSI EN 300 328 V2.2.2

  • EN 62368-1: 2014 + A11:2017

  • ETSI EN 301 489-1 V2.1.1

  • EN 55032: 2015

  • EN62479:2010

  • EN 61000-4-2:2009

  • EN 61000-4-3:2006+A1:2008+A2:2010
