Micromodule variation avec ou sans neutre¶

Product Description¶

None

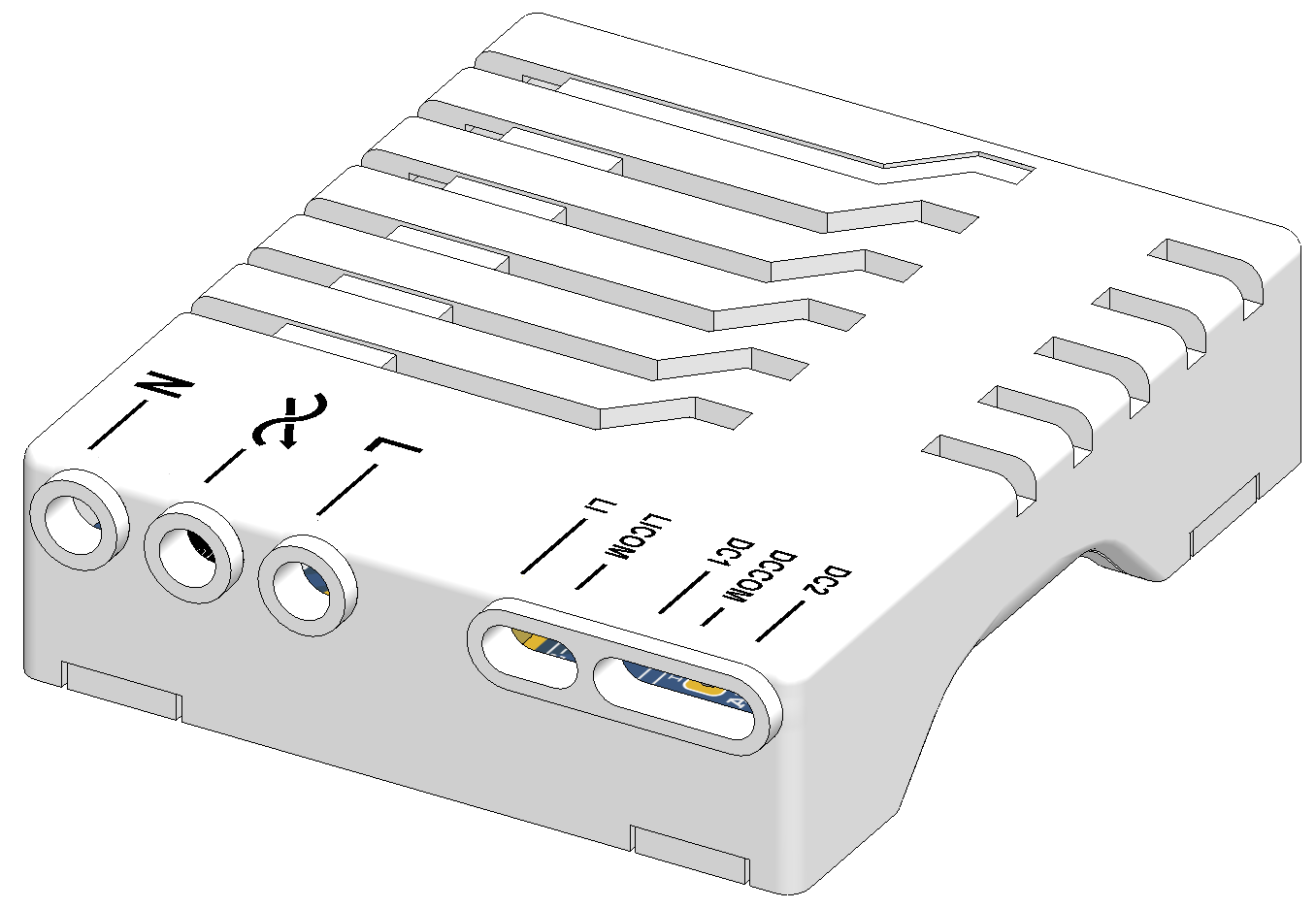

REF10 3D

Article code : SER65072
Internal ref : REF10

Technical Specifications¶

Supported Functions¶

The product has the following general functions :

Product Status LED Indication
Reset Button
Mains Power Supply
Product Health Monitoring
User Account
ref-function-DFU_product
ref-function-overheat-alert
ref-function-power-outage
ref-function-zero-load-detection
Energy Measurement
Bluetooth Mesh
ref-function-MESH_PROV
ref-function-MESH_UNPROVISION
ref-function-MESH_CONFIG
ref-function-MESH_PROXY
ref-function-MESH_RELAY
ref-function-MESH_FRIEND
On/Off Control
Dimming Control
Dimming Calibration
Motion Detection
Shutter Control
Chime/Doorbell
Ventilation Control
Voice Control
Scenario Management
Home Monitoring

Features¶

The product has the following features, which can be configured via the Mobile App depending on the use case:

Feature Labels
ref-feature-level-switch
ref-feature-scenario-switch
ref-feature-motion-detector
ref-feature-level-controller

Wiring and Interfaces¶

pages/products/images/REF10/REF10_wiring.png

Mains Connection and I/O Wiring¶

Warning

!! ELECTROCUTION HAZARD !!

Before connecting this product, carefully read this warning : Electrocution Hazard

Wiring for the Inter VV ou BP 1 touche¶

Wiring for the Inter VV ou BP 2 touches¶

Wiring for the Détecteur de mouvement¶

Wiring for the Variation¶

Installation¶

Once the product is physically connected, the features chosen, you can install the product from the Mobile App.

Revision date : May 28, 2026
