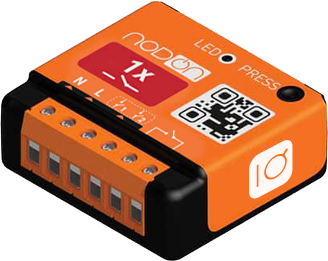

Micro-module 1 Power Output (On/Off)¶

Product Description¶

Allows control of various devices (lights, heating, garage door…) from a single module to transform a home into a connected dwelling. Installs easily and discreetly, connecting existing equipment without requiring their replacement.

Article code : SINP1
Internal ref : SINP1

Technical Specifications¶

Power supply: 230V AC ~ 50Hz
Connectivity: Bluetooth Mesh
Switching capacity: 230V AC - 14A
Max. Power: 3000W - Integrated zero crossing
Consumption: <1W
Dimensions: 40mmx44mmx16.9mm
Operating temperature: 0°C - 40°C
Installation: at the electrical device input

Supported Functions¶

The product has the following general functions:

Product Status LED Indication
Reset Button
Mains Power Supply
Product Health Monitoring
User Account
ref-function-DFU_product
Bluetooth Mesh
ref-function-MESH_PROV
ref-function-MESH_UNPROVISION
ref-function-MESH_CONFIG
ref-function-MESH_PROXY
ref-function-MESH_RELAY
ref-function-MESH_FRIEND
Voice Control
Scenario Management
Home Monitoring
ref-function-thermostat
ref-function-heater
Load Shedding

Features¶

The product has the following features, which can be configured via the Mobile App depending on the use case:

ref-feature-temperature-sensor
ref-feature-onoff-controller
ref-feature-heater-controller

Mains Connection and I/O Wiring¶

Warning

!! ELECTROCUTION HAZARD !!

Before connecting this product, carefully read this warning: Electrocution Hazard

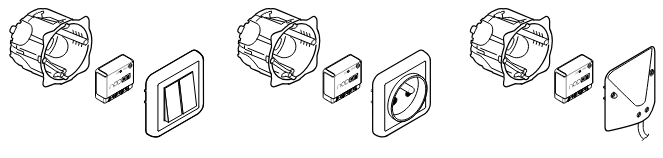

The multifunction module is installed in a junction box or behind a switch, electrical outlet, or light bulb.

Wiring for Temperature Sensor Feature¶

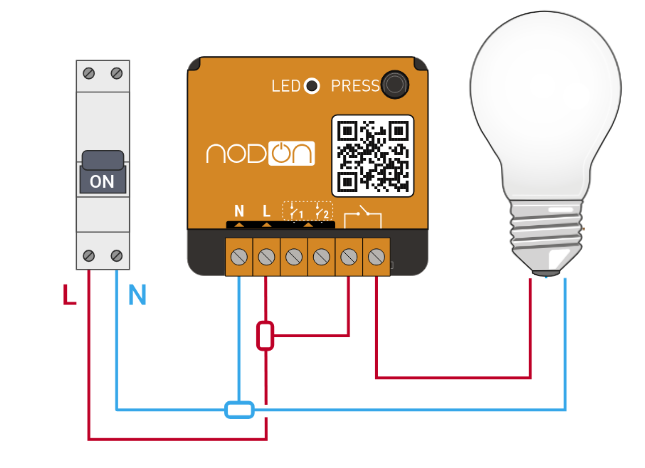

Wiring for On/Off Feature (Light Bulb)¶

../../../_images/multifunc_ampoule_installation.png

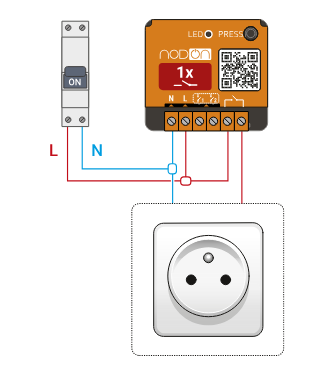

Wiring for On/Off Feature (Outlet)¶

../../../_images/multifunc_prise_electrique.png

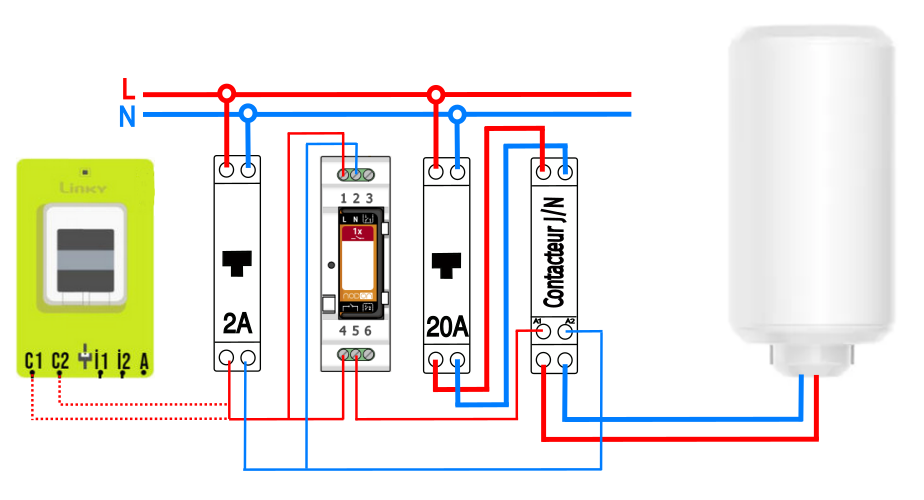

Wiring for Water Heater Feature¶

To ensure installation safety, the following setup is recommended:

The relay output controls the contact of a day/night contactor module which controls the Water Heater.

../../../_images/branchement_chauffeau_journuit.png

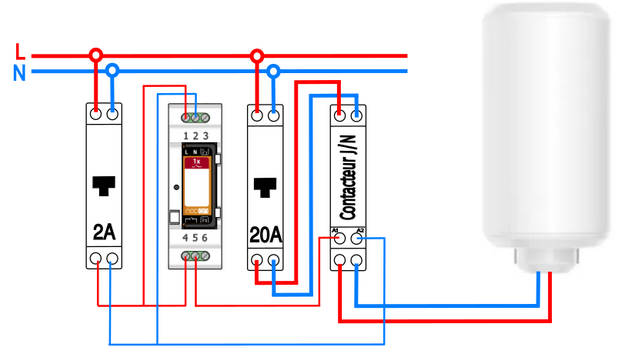

Proposed wiring in the absence of pre-existing meter control:

../../../_images/branchement_chauffeau.png

Installation¶

Once the product is physically connected and the features chosen, you can install the product from the Mobile App.

Revision date : May 28, 2026
