SER65076 - Micromodule 2 dry contact outputs
Product Description
The 2-output dry-contact micro-module (3A) is a recessed, mains-powered module for remotely controlling two loads via 2 dry-contact outputs (3A). Integrated into the Bluetooth Mesh ecosystem, it is configured from the mobile App to address different use cases (On/Off control, PV/GV ventilation, shutters such as roller shutters/blinds/garage doors/gates, chime, or control of heating equipment: boiler, valve, heat pump…).
The product also supports the range’s cross-cutting functions: status LEDs, Reset button, scenario management, voice assistant compatibility, energy metering, as well as safety functions (overheat alert, power outage, zero-load detection) and software updates via the app.
Item code : SER65076
Internal ref. : REF12
Technical Specifications
Power supply: 230V AC ~50Hz
Connectivity: Bluetooth Mesh
Dimensions: To be completed
Output: 2 x 100-230V AC 3A (dry contact)
Operating temperature: 10°C - 60°C
Mounting: Fits inside a recessed box
Maximum load limits
Load type |
Wiring |
Min power |
Max power |
Max current |
Per output |
|---|---|---|---|---|---|
Resistive (cos φ = 1) |
700W |
3A |
Yes |
||
Other (motors, LED…) |
500W |
2.2A |
Yes |
Supported Functions
Control
Lighting and socket management : Dimmer push-button · Motion detection · On/Off “light” output · On/Off switch
Heating management : Heating appliance management · Heating appliance management · Heating appliance management
Shutter management : Shutter control · Shutter control · Shutter control · Shutter control · Shutter switches · Shutter switches
Ventilation control : Ventilation control · Ventilation control · Ventilation control
Doorbell and chime : Doorbell and chime · Doorbell and chime
Automation
Scenario management · Vigilant Home
Energy & Sensors
Energy consumption measurement · Electrical flexibility management · Off-peak control
Security
Overheat alert · Power outage alert · Zero-load detection
Standard range functions
Product interfaces · Power supplies · Product health indication · User account · Software updates · Bluetooth Mesh connectivity functions · Voice assistant compatibility
Electrical Installation

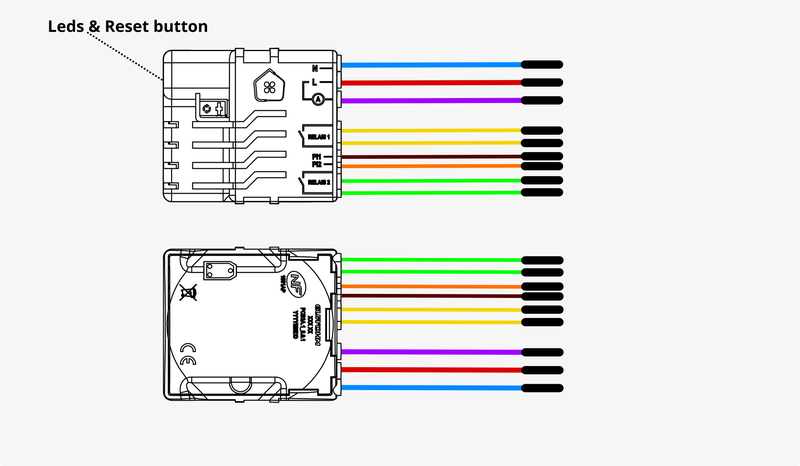

Interfaces
Mains connection
Warning
!! ELECTROCUTION HAZARD !! Before wiring this product, carefully read this warning: Electrocution Hazard

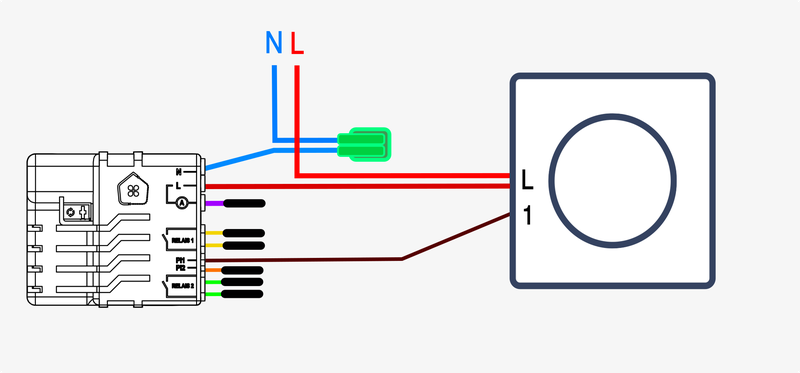

Input wiring 1-button/rocker switch
If the selected switch is a two-way switch, you can choose an assignment for the input from the following list:
If the switch is a push button, you can choose an assignment for the input from the following list:

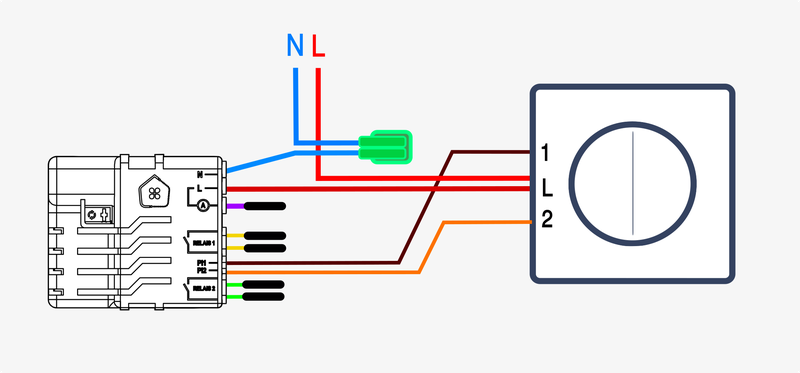

Input wiring 2-button/rocker switch
If the selected switch is a two-way switch, you can choose an assignment for the input from the following list:
- Lighting and socket management - On/Off switch (1 button required)
- Ventilation control - Ventilation control (1 button required)
- Ventilation control - Ventilation control (2 buttons required)
If the switch is a push button, you can choose an assignment for the input from the following list:
- Lighting and socket management - On/Off switch (1 button required)
- Lighting and socket management - Dimmer push-button (1 button required)
- Doorbell and chime - Doorbell and chime (1 button required)
- Shutter management - Shutter switches (2 buttons required)
Scenario management - Scenario trigger button (1 button required)

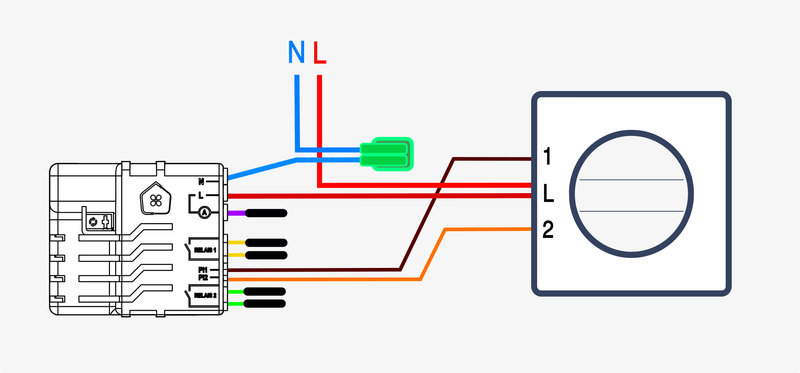

Input wiring 3-button switch
If the selected switch is a two-way switch, you can choose an assignment for the input from the following list:
- Shutter management - Shutter switches (2 buttons required)
If the switch is a push button, you can choose an assignment for the input from the following list:
- Shutter management - Shutter switches (2 buttons required)

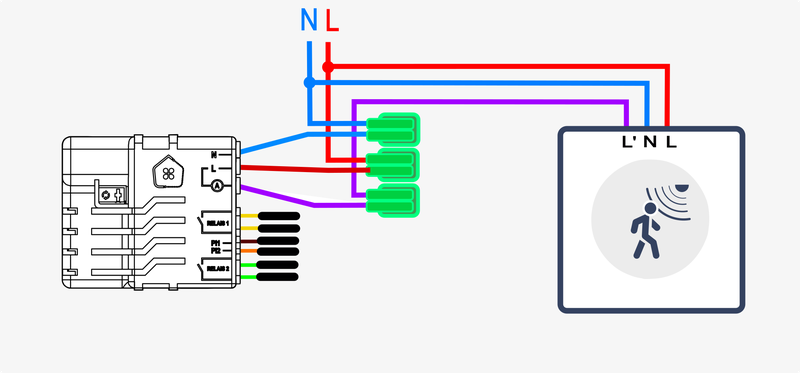

Input wiring Motion detector
Automatic input assignment :

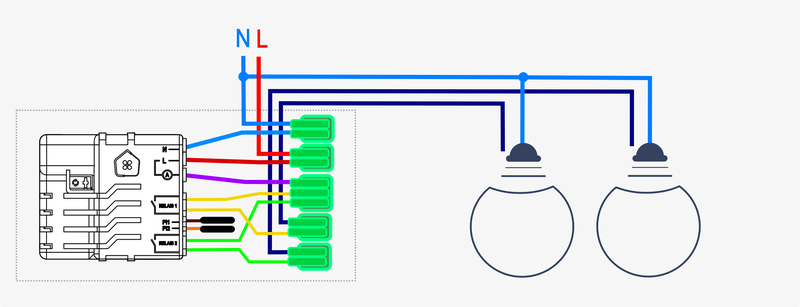

Output wiring On/Off (light bulb)
Output assignment :
Output wiring Ventilation (low/high speed or low speed + on/off)
Output assignment :
Output wiring Chime
Output assignment :
Output wiring Roller shutter
Output assignment :
Output wiring Blind
Output assignment :
Output wiring Gate
Output assignment :
Output wiring Garage door
Output assignment :
Output wiring Boiler
Output assignment :
Output wiring Zone valve
Output assignment :
Output wiring Heat pump
Output assignment :
Functional Setup
Once the product is electrically installed, you can power it on.
You can then start the functional setup from the mobile App.
