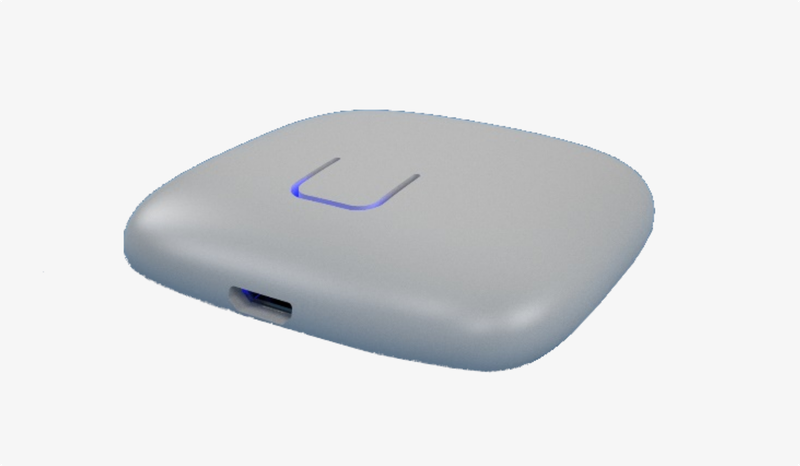

SER65086 - WIFI Gateway
Product Description
The WiFi gateway provides the link between the home’s Bluetooth Mesh network and the cloud, enabling:
Remote control of all products from the mobile App.
Cloud reporting of information (sensors, energy data, states…).
Management of scenarios and “Vigilant Home” functions depending on the use case.
Item code : SER65086
Internal ref. : REF90
Technical Specifications
Power supply: 5V DC via a USB-C charger
Connectivity: Bluetooth Low Energy (BLE), Wi-Fi
Radio frequency: 2.4GHz
Dimensions: 47x47x15mm
Operating temperature: 0°C - 50°C
Protection rating: IP30
Mounting: Free-standing
Supported Functions
Automation
Scenario management · Vigilant Home
Security
Standard range functions
Product interfaces (Product state indication by LEDs: adapted — see Usage) · WiFi connectivity · Gateway secondary MQTT interface · Voice assistant compatibility · Product health indication · User account · Software updates · Bluetooth Mesh connectivity functions
Usage
The product has 1 red, green and blue LED indicating state transitions or states:
Indication lumineuse |
Description |
Label technique |
|---|---|---|
Blanc continu |
Démarrage de la gateway |
|
Flash bleu 200ms/2s |
Non provisionné en mesh |
|
Flash vert 50ms/2s |
Provisioning mesh en cours |
|
Flash jaune 200ms/2s |
Wifi non configuré |
|
Flash violet 200ms/2s |
? |
|
Vert continu |
Serveur atteint |
|
Bleu continu |
Service opérationnel |
|
Flash rouge 200ms/2s |
? |
|
Flash rouge 100ms/1s |
Remise à zéro en cours |
|
Cyan continu |
Mise à jour logicielle en cours |
|
Violet continu |
Migration de serveur en cours |
|
Electrical Installation

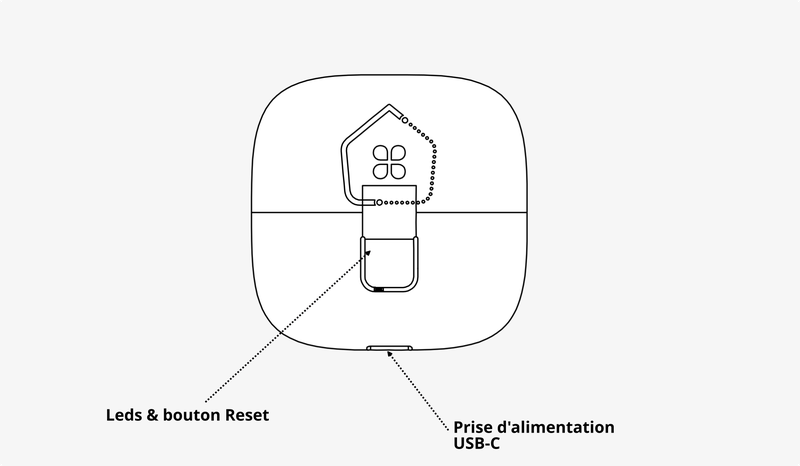

Interfaces
Powering up and placement
Functional Setup
Once the product is electrically installed, you can power it on.
You can then start the functional setup from the mobile App.
Revision date : Oct 13, 2026
